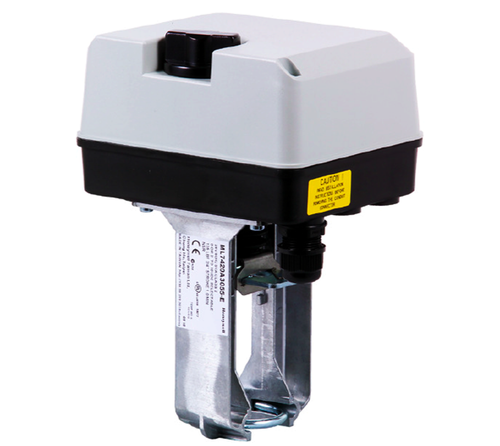

For Bulk requirement, Kindly click on enquiry now button Product Details: Product Description Brand Honeywell Model ML7420A8088-E Temperature Limits Ambient operating limits -10~ 50 ℃ at 5~95% r.h. Ambient storage limits -40… 70 °C at 5…95% r.h. Medium temperature Max. 150 °C (220 °C with Safety Protection class III as per EN60730-1 Protection standard IP54 as per EN60529 Flame retardant housing V0 as per UL94 (with metal cable gland) Wiring Wiring terminals 1.5 mm2 Cable entry M20. Supply Voltage 24 Vac ±15%; 50/60 Hz Power Consumption 5 VA Rated stroke 20mm Run time at 50 Hz 1 min Close-off force ≥ 600 N Weight 1.3 Kg Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.
