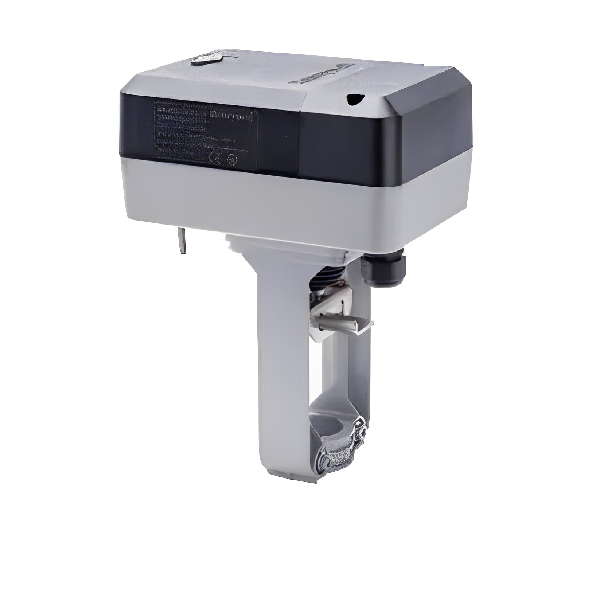

ML8824A0620 Honeywell Electric Linear Valve Actuator

For Bulk requirement, Kindly click on enquiry now button Product Details: Product Description Brand Honeywell Model ML8824A0620 Supply Voltage 24Vac ± 15% ,50/60Hz; 24Vdc 15% ,-10%; Power Consumption 14.5VA Signal input1 0(2) Vdc or 0(4) mA The valve connection is located at the bottom; 2-way valve “closed”; 3-way valve A-AB port “open” Signal input 2 10 Vdc or 20mA The valve connection is located on the top; 2-way valve “open”; 3-way valve A-AB port “closed” Feedback Signal 0(2)~10 Vdc, 0(4)~20 mA Rated Travel 20mm Run time 40s or 60s Close-off force ≥1800N Weight 2.3kg Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.
